SICS
Patent No.: US 11,105,582 Bl
We started with adjustability, added modularity and stability.
Then we put it all together with our passion for innovation and obsession for quality.
ADJUSTABILITY
A hard truth about marksmanship is that your equipment is only as good as it fits you. You can have the best of the best – if it doesn’t fit your physique or your shooting style, it is not helping you deliver your best performance. On the contrary, it will work against you. We don’t know about you, but here at Spuhr® we believe that everybody on your team should work together. This is why we started by addressing the issue of adjustability when we designed the SICS™ so you can get a perfect fit and maximum performance.
Pistol Grip
The SICS™ uses a proprietary pistol grip, designed to comfortably fit a wide range of hand sizes without creating tension during prolonged trigger engagement. The pistol grip is rubberized for a non-slip grip and can also be adjusted for length-of-pull.
Length-Of-Pull
The stock assembly allows for rapid tool-less length-of-pull (LOP) adjustment by pinching the LOP levers and moving the LOP Bar and Butt Plate Assembly to the desired position. The total span of rapid LOP adjustment is 50 mm (1.97”) but the Butt Plate Assembly can also be fitted with a spacer to further extend the LOP.
The LOP Bar can also be fitted with preset stops for minimum and maximum LOP, making it easy to quickly get into a proper firing stance/posi-tion with a minimum amount of motion.
Cheek Piece
The rubberized cheek piece can be adjusted for height and for lengthwise position. The height adjustment is easily made using a wing nut on the side of the cheek piece slide.
Lengthwise adjustment of the cheek piece position requires a Torx 20 key.
Butt Plate Height
The Butt Plate Assembly, featuring a Limb-saver® Airtech® recoil pad, allows for rapid tool-less adjustment of the recoil pad height by depressing the Butt Plate Locking Button while sliding the Butt Plate Assembly to the desired position. The total adjustment span is 30 mm (1.18”).
Adjustability is the key. It helps if the chassis works with you in those circumstances where the environment does not.
MODULARITY
An extension of adjustability is modularity. Modularity allows you to tailor your SICS™ to your needs, and to build a tool that will work with you and has the possibility to change over time, or for different purposes.
Spuhr® Interface™
The Spuhr Ideal Chassis System™ features one of the hallmarks of the Spuhr Ideal Scope Mount System™: the Spuhr Interface™.
Using a systemic approach, the integration of the Spuhr Interface™ into the SICS™ allows users to fully configure their rifle as needed, being able to move accessories between their scope mount and their chassis, enabling the perfect setup for any intended use.
The Spuhr Interface™ consists of a female and a male interface surface, featuring circular grooves and ridges mating around an M4 screw. This interface design does not have any sharp edges and has the best repeatability on the market.
Forend
The SICS™ 16” standard forend features an integrated Arca Swiss® rail for use of various commonly available bipod and tripod solutions. The SICS™ can also be fitted with different length forends depending on user requirements.
With all SICS™ forends, a short Picatinny Gen2 rail is included so that a bipod or other 3rd party accessories can be attached to the chassis.
Bag Riders
The Folding Stock Assembly includes a fixed height exchangeable bag rider which features Spuhr Interfaces™ on the bottom surface, for attachment of butt spikes, and other accessories.
STABILITY
Stability
The third key feature of SICS™ is stability. We could have called this precision, but the chassis is not about precision per se, that is the job of the barrel and action. Our chassis provides extreme stability and stiffness as the foundation for a superiorly accurate rifle system is a rigid platform for the barreld actio

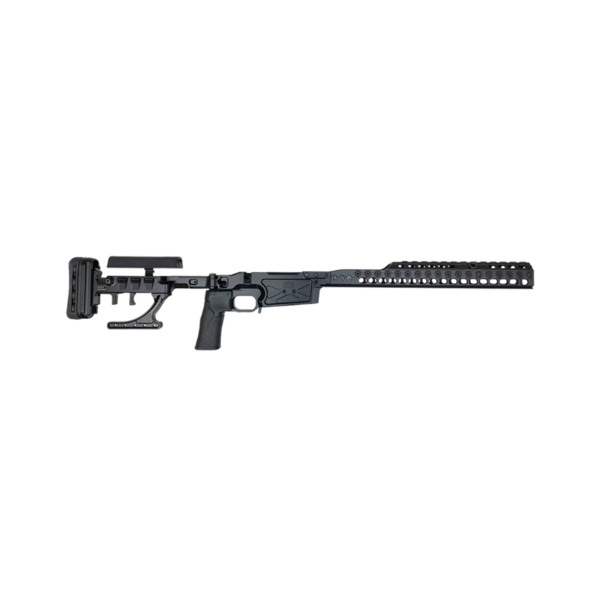

Chassis Body
The SICS™ is based around a rigid chassis body machined from a single billet of 7000 series aircraft aluminum with an extended tenon to support the forend. The exterior sides of the magwell area of the chassis body feature Spuhr Interfaces™ for easy attachment of accessories.
Forend
The Modular Forend, attach to the chassis body with nine M6 fasteners, is machined from a single piece of aircraft aluminum in a tubular design to increase rigidity and stability.

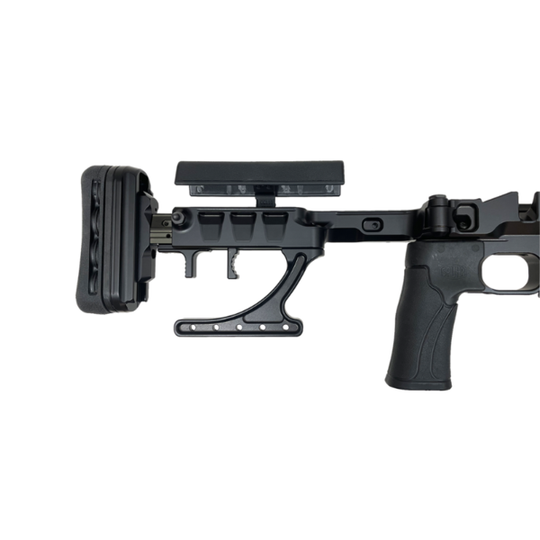

Folding Stock Assembly
The Folding Stock Assembly features an adjustable locking mechanism to ensure a rock-solid lockup.
