Better quality. Better price.

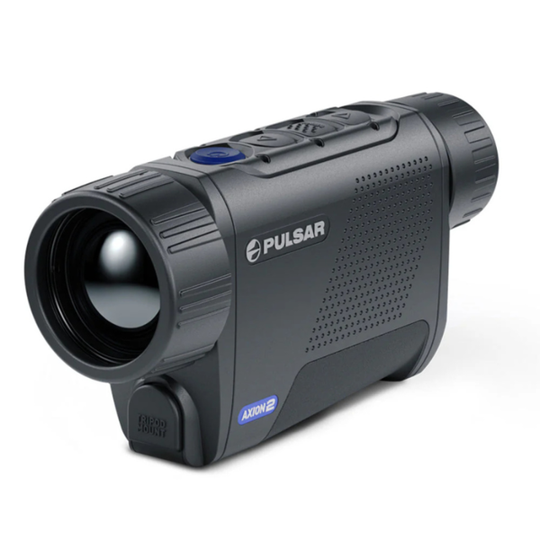

Axion 2 thermal imaging monoculars are durable and resilient. They fit comfortably in the palm of your hand and are lightweight enough for extended use or challenging situations.
All models in the Axion 2 line feature high-class fast aperture lenses, capable of capturing more heat signatures.
Equipped with powerful European-made sensors known for low image latency, these monoculars enhance your confidence in making accurate decisions.
The range includes options with or without an integrated laser rangefinder, allowing you to tailor the monocular to your specific needs.
A replaceable APS-5 battery ensures extended operation time, making the Axion 2 a dependable companion for your outdoor adventures.
If you prefer a slightly higher base magnification and larger resolution, the Pulsar Axion 2 XG35 is the way to go.
Main specifications
Sensor
@ 12 µm 640x480
Objective lens
F35 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees
12.5 x 9.4
FOV (HxV), m@100m
21.9 x 16.5
Detection range
1750 m
Sensor
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
12
Sensor NETD, mK
< 40
System NETD, mK
< 20
Frame rate, Hz
50
Optics
Objective lens
F35 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees
12.5 x 9.4
FOV (HxV), m@100m
21.9 x 16.5
Eye relief, mm
14
Display
Type
AMOLED HD
Resolution, pixels
1024x768
Range performance
Detection range, m
1750 m
Video recorder
Video / photo resultion, pixel
1024x768
Video / photo format
.mp4 / .jpg
Build-in memory, GB
16
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz
2.4 / 5
Environmental characteristics
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +40
Connections and compatibilities
Mount type
1/4"
Supported application
Stream Vision 2
Power supply
Output voltage, V
3.0 – 4.2
Battery type
APS 5 Li-ion Battery Pack
Capacity, mAh
4900
Operating time on battery pack, hat t=22°С
7
External power supply, V
5V; 9V (USB Type-C Power Delivery)
Weight & size
Body material
Magnesium alloy
Dimensions, mm
152x50x74
Weight, kg
0.38 (with the APS5 battery)
