Better quality. Better price.
Axion 2 thermal imaging monoculars are durable and resilient. They fit comfortably in the palm of your hand and are lightweight enough for extended use or challenging situations.
All models in the Axion 2 line feature high-class fast aperture lenses, capable of capturing more heat signatures.
Equipped with powerful European-made sensors known for low image latency, these monoculars enhance your confidence in making accurate decisions.
The range includes options with or without an integrated laser rangefinder, allowing you to tailor the monocular to your specific needs.
A replaceable APS-5 battery ensures extended operation time, making the Axion 2 a dependable companion for your outdoor adventures.

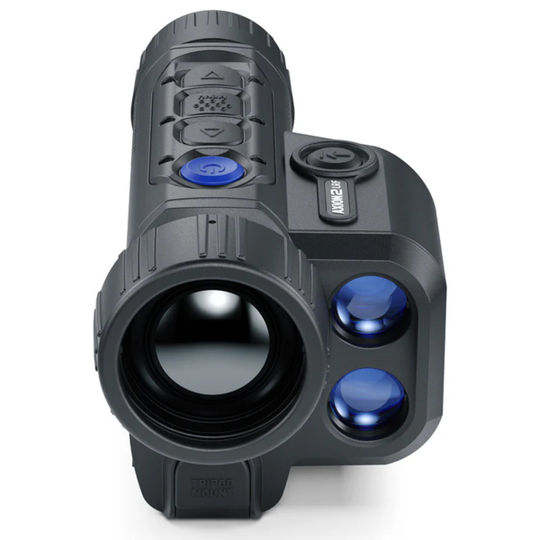

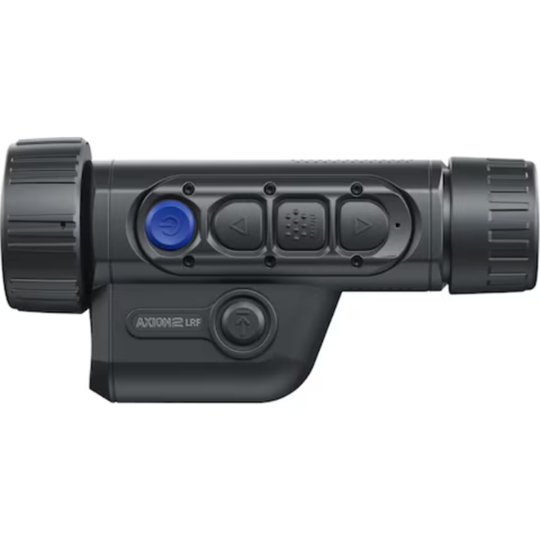

The Pulsar Axion 2 LRF XG35 is a favorite of hunters who require a bigger resolution and precise distance measurements.
Main specifications
Sensor
@ 12 µm 640x480
Objective lens
F35 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees
12.5 x 9.4
FOV (HxV), m@100m
21.9 x 16.5
Detection range
1750 m
Sensor
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
12
Sensor NETD, mK
< 40
System NETD, mK
< 20
Frame rate, Hz
50
Optics
Objective lens
F35 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees
12.5 x 9.4
FOV (HxV), m@100m
21.9 x 16.5
Eye relief, mm
14
Display
Type
AMOLED HD
Resolution, pixels
1024x768
Range performance
Detection range, m
1750 m
Laser rangefinder
Max. measuring range, m
1000
Measurement accuracy, m
± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014
1
Wavelength, nm
905
Video recorder
Video / photo resultion, pixel
1024x768
Video / photo format
.mp4 / .jpg
Build-in memory, GB
16
WI-FI
Wireless protocol
Wi-Fi
Wireless standard
IEEE 802.11 b/g/n/ac
Frequency, Ghz
2.4 / 5
Environmental characteristics
Degree of protectionIP code (IEC60529)
IPX7 (waterproof)
Operating temperature range, °С
-25 – +40
Connections and compatibilities
Mount type
1/4"
Supported application
Stream Vision 2
Power supply
Output voltage, V
3.0 – 4.2
Battery type
APS 5 Li-ion Battery Pack
Capacity, mAh
4900
Operating time on battery pack, hat t=22°С
up to 7
External power supply, V
5V; 9V (USB Type-C Power Delivery)
Weight & size
Body material
Magnesium alloy
Dimensions, mm
152x74x75
Weight, kg
0.47 (with the APS5 battery)
